该机主要用于原粮的配比混合或用于原料定量供给，是粮食加工厂原料配比必备设备。
This series of equipment, mainly used for matching and mixing of unprocessed grains or quantitative feeding of raw materials, is necessary for matching of raw materials in grain processing plants.

特点：
Characteristics:

1、采用电子激光精确下料，静电喷涂生产工艺，外边色泽亮丽不易变色。
Electronic laser is adopted for accurate feeding, and electrostatic spraying process is adopted, so the surface color is bright and no discoloration occurs for a long time.

2、结构紧凑简单，轻巧灵活，操作方便。
It is featured with compact and simple structure, light weight and easy operation.

3、特制的进料口使物料均匀进入配比区，是配比更加恒定。
The specially-made feed inlet can ensure that the materials can enter into the matching area uniformly, and matching can be more constant.

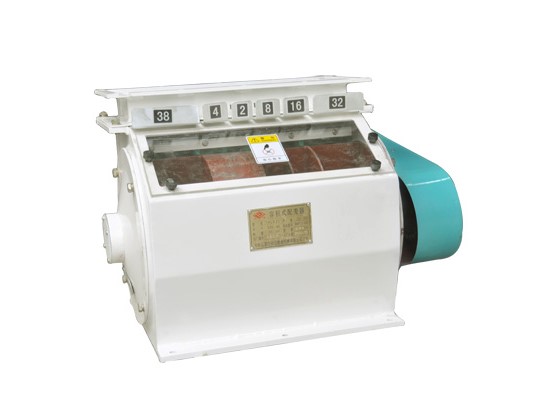

4、该机有6个定量盘，根据定量部位的容积不同，可以是原料的配比混合更加准确。
The equipment is equipped with six quantification plates, and they can make the matching and mixing of raw materials more accurate according to different volumes of the quantified positions.

5、结构简单，运行平稳，价位较低。
It is featured with simple structure, stable operation and relatively low price.

6、调节输送能力和调节输送精度足以满足小麦加工行业需求。
Adjustment & conveying capacity and precision can meet corresponding requirements in wheat processing industry.

技术参数:
Technical parameters:

项目 Item 型号 Model	TPLR20	TPLR30
六个定量盘容积的比例分配   Proportional distribution of volume of six quantification plates	2%，4%，6%，16%，32%，38%	2%，4%，6%，16%，32%，38%
配比况差（%）   Matching difference (%)	≤2	≤2
配比范围（n）   Matching range (n)	2n（n≤50）	2n（n≤50）
调速范围（r/min）   Speed adjustment range (r/min)	≤40	≤40
大产量（t/h）   Max. output (t/h)	14	23
功率（kw）   Power (kw)	0.75	0.75
外形尺寸（长×宽×高）mm   Boundary dimension (L × W × H) mm	740×700×410	744×775×510
